Name: MoistureMeterD Compact
Brand: Delfin Technologies
Price: 3690.0 EUR
Availability: InStock

€3.690,00

Taxes not included

Ready to ship from EU
Backordered, shipping soon

Universal tissue water and edema measurement instrument to assess skin and upper subcutis

Highly sensitive measurement of percentage water content in skin and subcutis

Totally non-invasive

Localized edema measurements at virtually all body skin sites

Displays percentage water content (0 - 100 %) highly proportional to interstitial fluid

Built-in pressure sensor for consistent, reproducible and user-independent measurements

Quantity

Pairs well with

MoistureMeterD Compact

€3.690,00

Universal tissue water and edema measurement instrument to assess skin and upper subcutis

Highly sensitive measurement of percentage water content in skin and subcutis
Totally non-invasive
Localized edema measurements at virtually all body skin sites

The MoistureMeterD Compact is a portable and non-invasive instrument for local measurements of tissue water. It is a unique tissue water-specific instrument for assessing percentage water content (PWC) in biological tissues. It measures the tissue dielectric constant (TDC) in the skin and subcutis in seconds after applying the measurement probe on the skin. TDC values are converted into percentage water content (PWC) scale from 0 to 100 % for easy interpretation of results.

Measuring unit

Dimensions 180 mm x 40 mm x 35 mm
Weight 110 g
Units in water content %
Measurement range for PWC 0 – 100 %
Rechargeable battery

Probe

Integrated open ended coaxial probe
Effective measurement depth 2.5 mm
Sensor contact diameter 20 mm

EC Certificate

Directive 93/42/EC, Medical devices

Skin hydration measurement device

The practicality of the MoistureMeterD Compact makes it an ideal tool for measurements in clinical settings and therapy centers for assessing tissue water, edema and effects of treatment interventions. Applications for the MoistureMeterD Compact vary from edema of medical conditions into research and development applications in pharmaceutical, wound and personal care industry where easy assessment of tissue water content is mandatory.

You can find independent studies related to MoistureMeterD Compact in our Publications section.

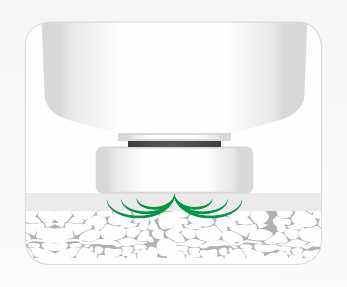

Skin hydration measurement principle

The MoistureMeterD Compact generates a low power 300 MHz microwave field exposed to tissue. Part of the signal is absorbed and part is reflected back to permit the calculation of a dielectric constant, which is directly proportional to the water content of the measured tissue. The value increases with increasing water content and edema.
