Name: SkinPhotoTyper
Brand: Delfin Technologies
Price: 2690.0 EUR
Availability: InStock

€2.690,00

Taxes not included

Ready to ship from EU
Backordered, shipping soon

The SkinPhotoTyper is a measurement device for objective assessment of skin phototype (adjust laser power for hair or tattoo removal – and more).

Measures skin phototype based on ITA degree

Helps in adjusting the power of IPL or laser device before hair removal

Utilizes scientifically validated measurement technology

Readings unaffected by device contact pressure and ambient light

Portable and battery operated

Fast and convenient measurement

Calibration check tool included

Quantity

Pairs well with

SkinPhotoTyper

€2.690,00

The SkinPhotoTyper is a measurement device for objective assessment of skin phototype (adjust laser power for hair or tattoo removal – and more).

Measures skin phototype based on ITA degree
Helps in adjusting the power of IPL or laser device before hair removal
Calibration check tool included

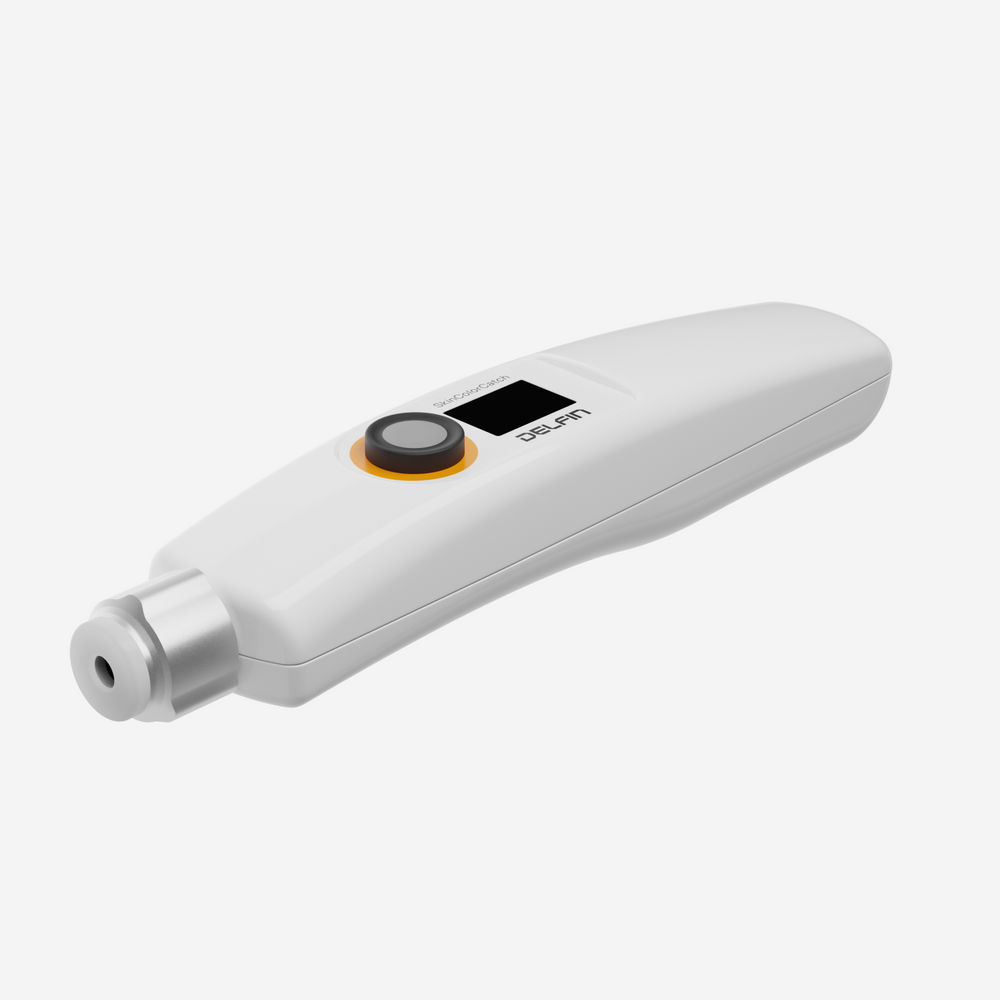

SkinPhotoTyper is a fully portable and wireless instrument for measuring the skin phototype. The device utilizes scientifically validated measurement technology. Skin phototype is measured based on the ITA degree and classified with a scale from 1 (very light) to 6 (dark) similar to Fitzpatrick scale.
Skin phototype assessment helps in adjusting the power of the IPL and laser devices before hair removal to increase the safety of the treatment. Additionally, skin phototype measurements can be used in tattoo removal, chromotherapy aesthetic care or in any study related to skin pigmentation.

Dimensions: 198 x 40 x 35 mm
Weight with batteries: 145 g
Two user changeable batteries, size AA
Measurement time: 1.5 seconds
Illuminated skin area: 0.3 cm²
Illumination source: 3 white LEDs
RGB measurement range: 25 – 246
Measured RGB peak wavelengths (nm): 620/540/460

Skin color measurement principle

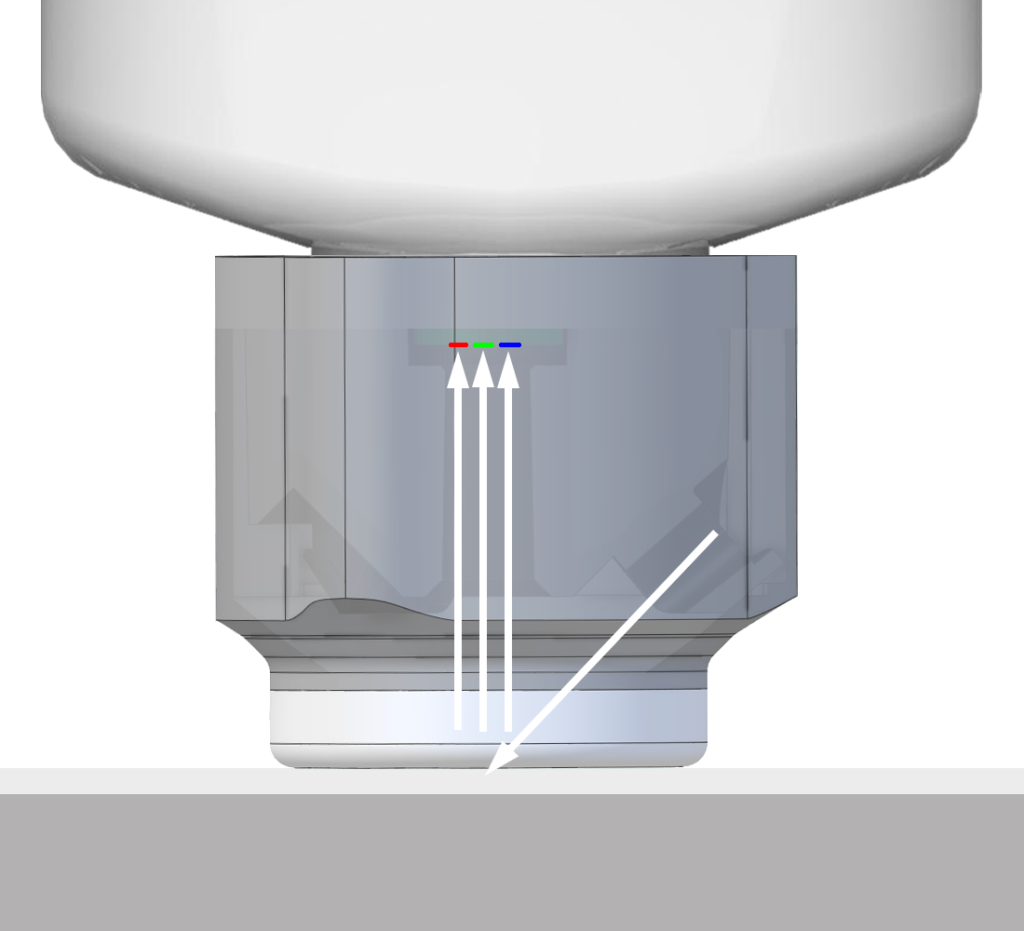

White LEDs corresponding to daylight are arranged circularly inside the measurement chamber of the SkinPhotoTyper. When the SkinPhotoTyper is gently placed on the skin, the LEDs illuminate the skin in the angle of 45 degrees to minimize gloss. The reflecting light from the skin is detected with an RGB color sensor.

The measurement is not affected by ambient lightning conditions and the optical orifice of the SkinPhotoTyper is designed to minimize possible blanching effects caused by the contact pressure against the skin.
