Name: SkinFibroMeter
Brand: Delfin Technologies
Price: 4070.0 EUR
Availability: InStock

€4.070,00

Taxes not included

Ready to ship from EU
Backordered, shipping soon

Intelligent measurement logic provided for assessment of skin tissue firmness, subcutaneous induration and fibrotic lesions

Fully portable indentation instrument

Measures induration of skin and upper subcutis noninvasively

Fast and sensitive measurement

Does not alter skin structure

Quantity

Pairs well with

SkinFibroMeter

€4.070,00

Intelligent measurement logic provided for assessment of skin tissue firmness, subcutaneous induration and fibrotic lesions

Fully portable indentation instrument
Measures induration of skin and upper subcutis noninvasively
Fast and sensitive measurement

SkinFibroMeter is a portable and easy-to-use device for measurements of tissue induration. Superficial induration manifesting in skin and upper subcutis can be quantified with an indentation principle non-invasively without alterations in measured tissue structure. The hand-held portable SkinFibroMeter is assessing induration in absolute stiffness unit.

Measuring unit

Dimensions: 189 x 40 x 35 mm
Weight with batteries: 145 g
Two user changeable batteries
Measurement completion time: 0.5 seconds
Measured parameter: Indenter force
Measuring SI unit: N (Newton)

Integrated probe

Indenter length: 1.25 mm
Indenter diameter: 2.5 mm
Base plate diameter: 23 mm

Skin stiffness measuring device

The SkinFibroMeter is an instrument to assess tissue stiffness in quantitative units. Only one stiffness parameter is enough to determine the tissue firmness. The SkinFibroMeter has been validated against measurements with industrial standards and in clinical studies against palpation and histological findings.

You can find independent studies related to SkinFibroMeter in our Publications section.

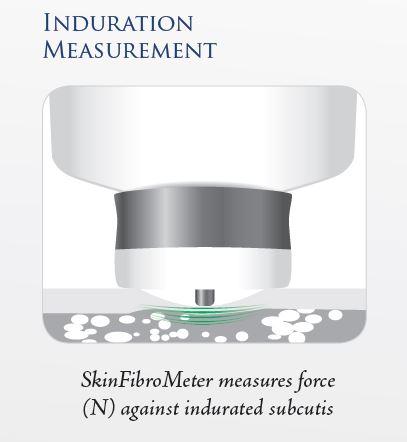

Skin stiffness measurement principle

The SkinFibroMeter consists of a 1.25 mm length indenter and two force sensors. The device is briefly pressed against the skin and the contact force is registered. The indenter imposes a constant deformation when the instrument is in full contact with the skin. The skin and the underlying upper subcutis resist the deformation and the induration value in Newtons (N) is determined.
